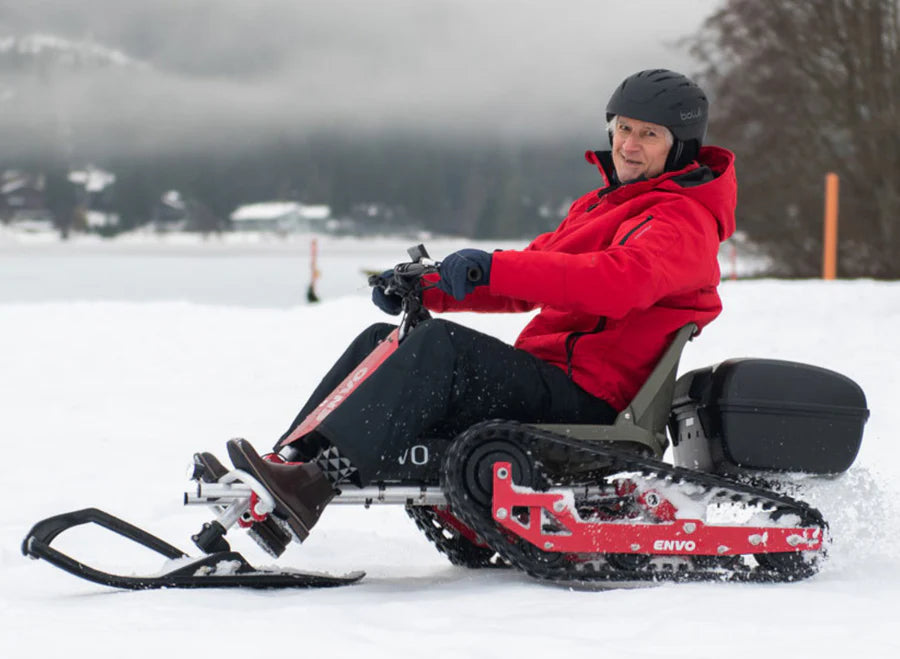

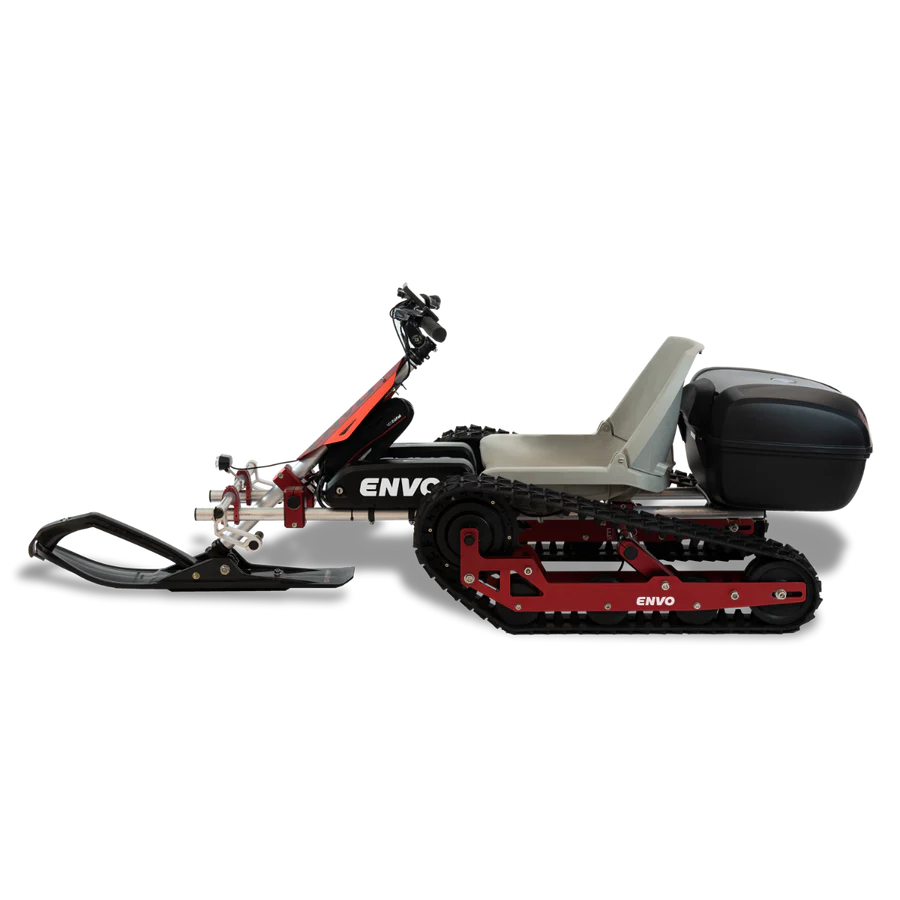

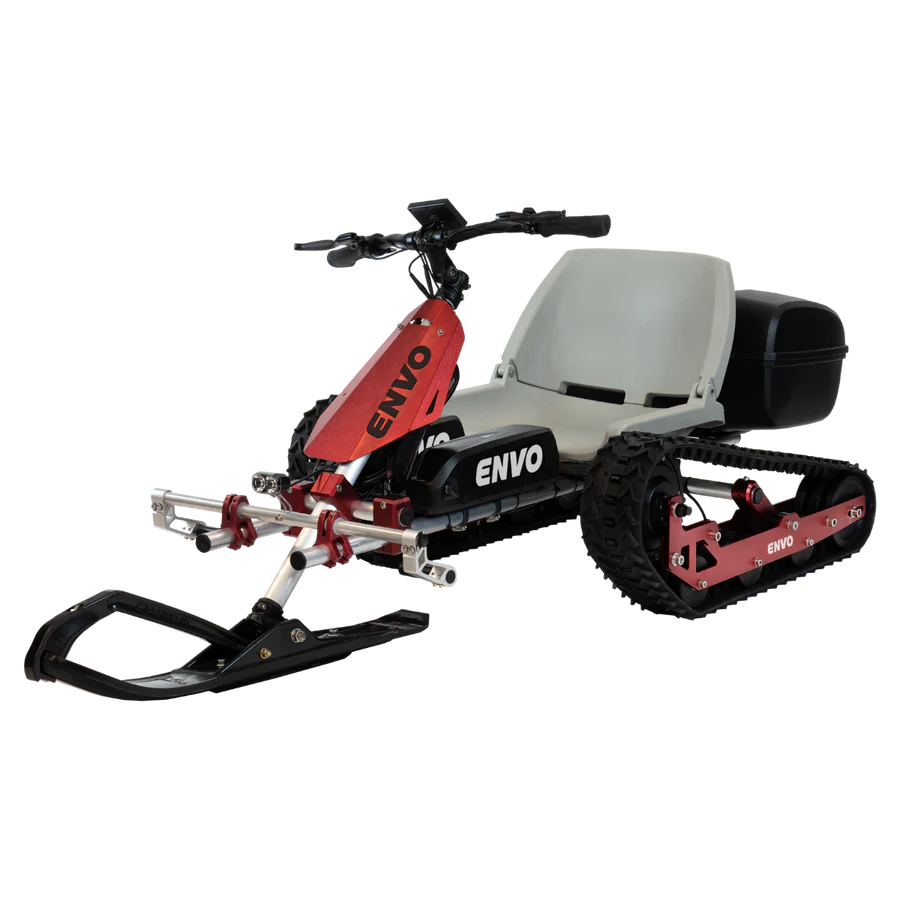

ELECTRIC SNOWKART
Equipped with 2 electric snow tracks and a ski at the front your SnowKart provides the best stability, performance and a comfortable ride in the snow, giving a joy that has never been experienced before. Safe and easy to ride for everyone including those with disabilities or adaptive requirements. You have it all without an environmental impact nor noise.
ELECTRIC SNOWKART
Equipped with 2 electric snow tracks and a ski at the front your SnowKart provides the best stability, performance and a comfortable ride in the snow, giving a joy that has never been experienced before. Safe and easy to ride for everyone including those with disabilities or adaptive requirements. You have it all without an environmental impact nor noise.
| Feature |
| Top Speed XS |
| Max Power XS |
| TORQUE XS |
| MAX Power XS |
| Feature | SPECIFICATION |
|---|---|
| Top Speed | 12 MPH / 20 KMH |
| Max Power | 2000 W |
| TORQUE | 120 NM |
| MAX Power | 3 KW |

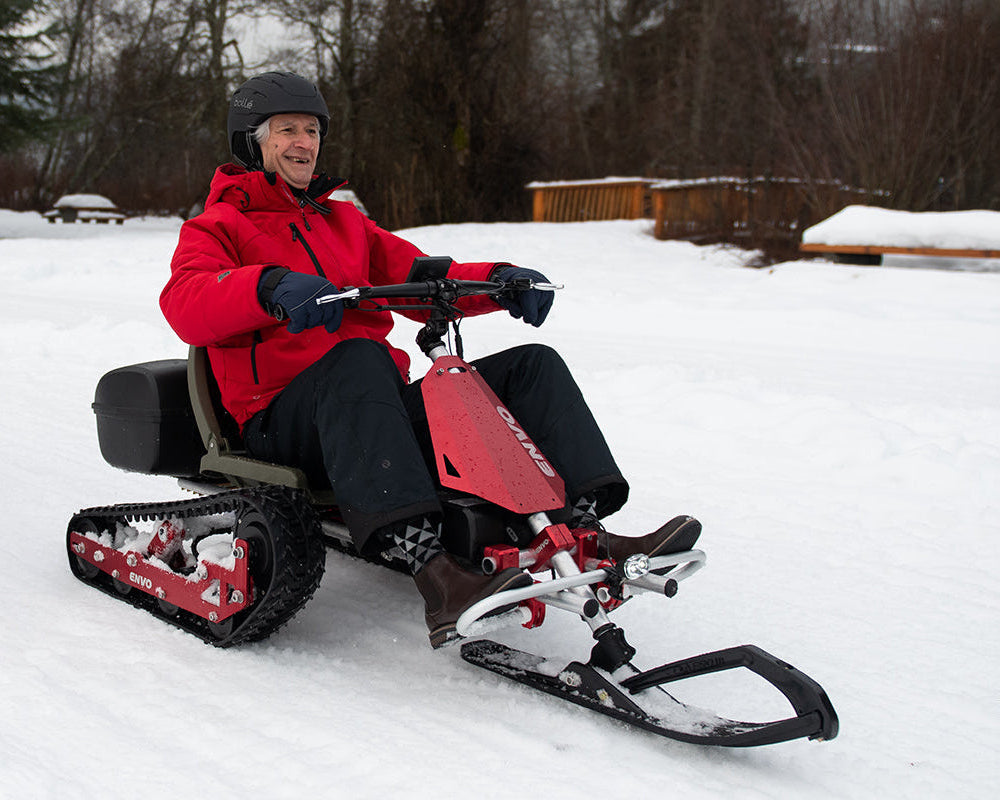

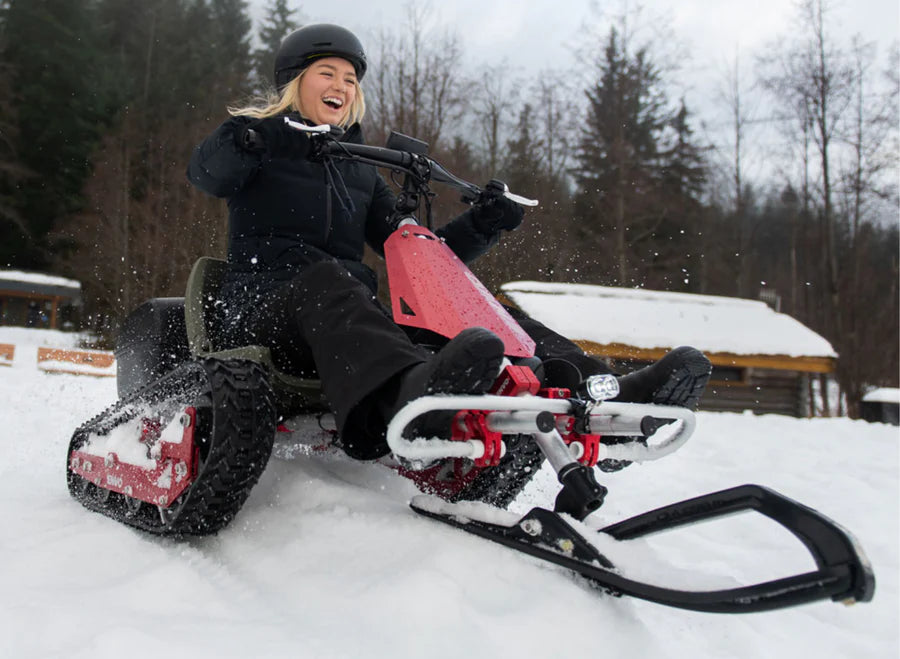

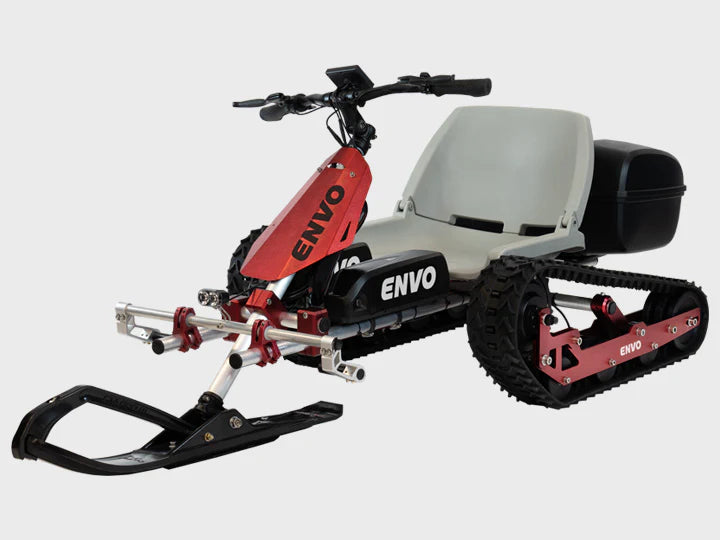

ELECTRIC SNOW MOBILITY
Equipped with 2 electric snow tracks and a ski at the front your SnowKart provides the best stability, performance and a comfortable ride in the snow, giving a joy that has never been experienced before. Safe and easy to ride for everyone including those with disabilities or adaptive requirements. You have it all without an environmental impact nor noise.

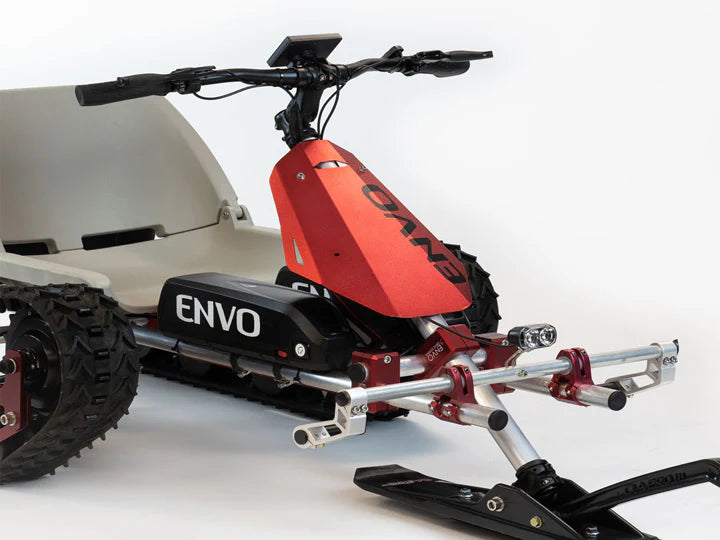

DESIGN
Compact design with easy DIY assembly practices for easy transportation or customize the build.

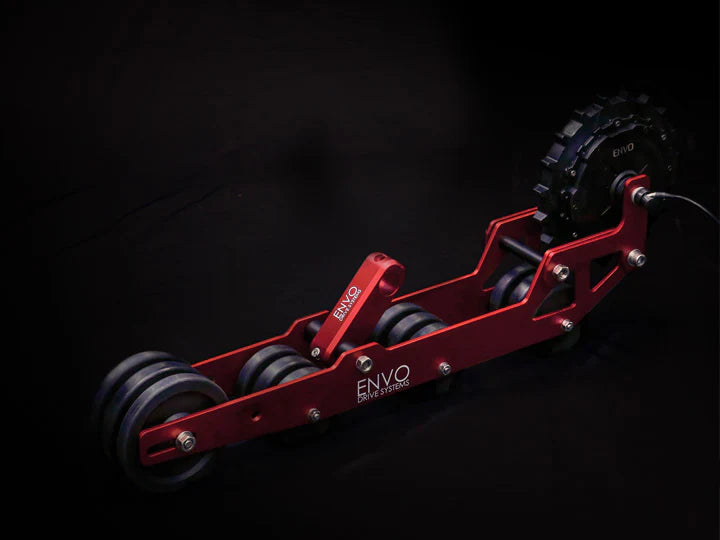

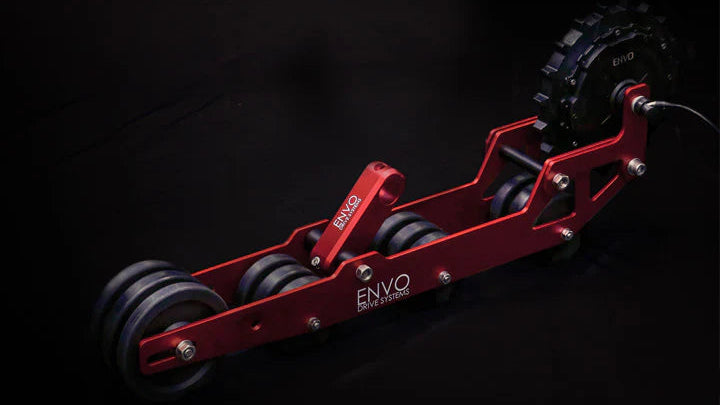

BOGIE
Made from multiple aluminum CNC machined parts, customizable and maintenance-friendly snow track assembly makes it possible to build any electric snow machine to ride or even electric snowplow.

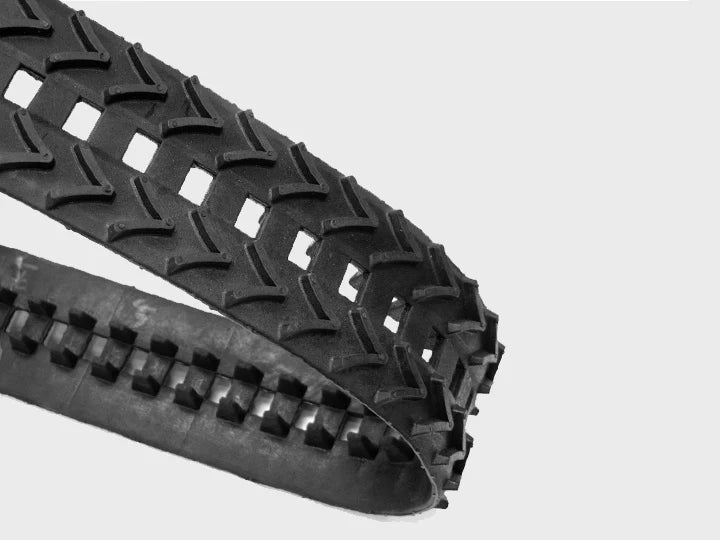

SNOW TRACKS
The V shape knob rubber track creates great traction with almost any type of snow terrain, proven up to a 20% slope. It has a well-thought geometry, secure in track with minimized resistance and energy loss which can generate up to 100KGF (220lbs) of traction. Made from rubber and Kevlar reinforcement, It is relatively light, safe and easy to handle when it comes to adjustment or replacement.

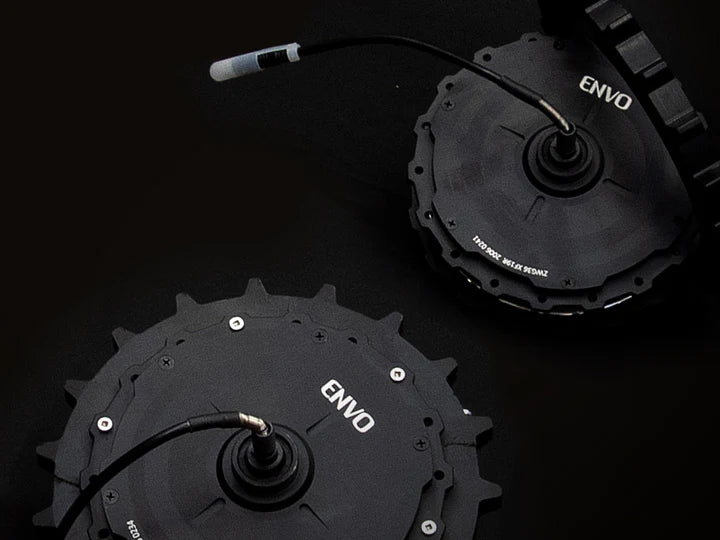

MOTOR
Powerful Integrated BLDC geared hub motor provides up to 1200W of power and 120Nm of torque in a compact, sealed and maintenance-free construction. The motor acts as e-brake when braking via brake lever cut off switch signal.

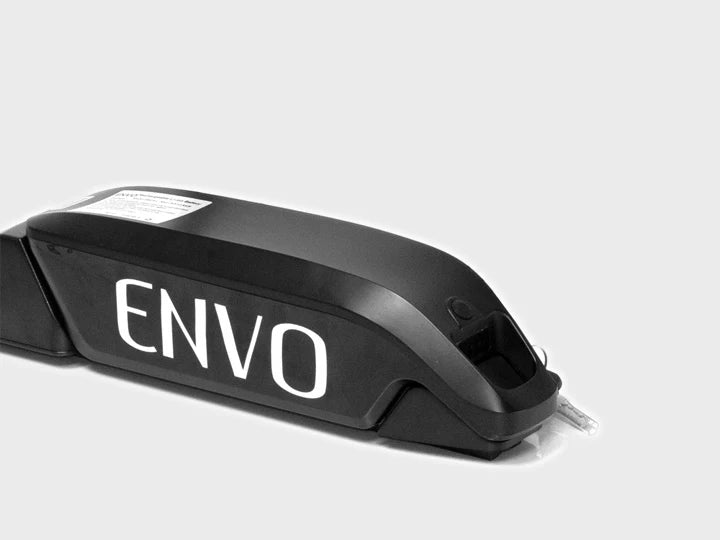

BATTERY
Lizard style 48V/17.5Ah Li-ion battery pack featured with Panasonic/LG cells with a working temperature range of -20 Celsius, provides up to 2000W of output power and 840Wh of energy with the option to double by using 2 packs is enough for up to 2 hours full throttle continuous ride on pedal assist.

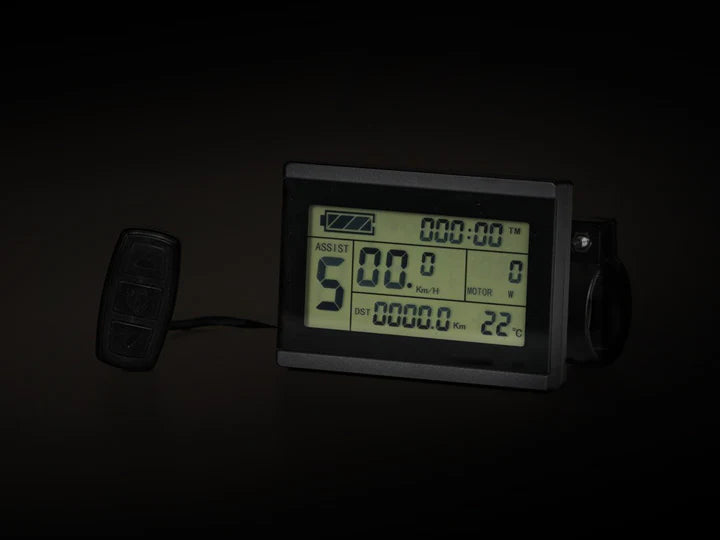

CONTROL SYSTEM
LCD3 meter provides you with a variety of functions such as vehicle controls and vehicle status digitized displays to meet the trip demands.

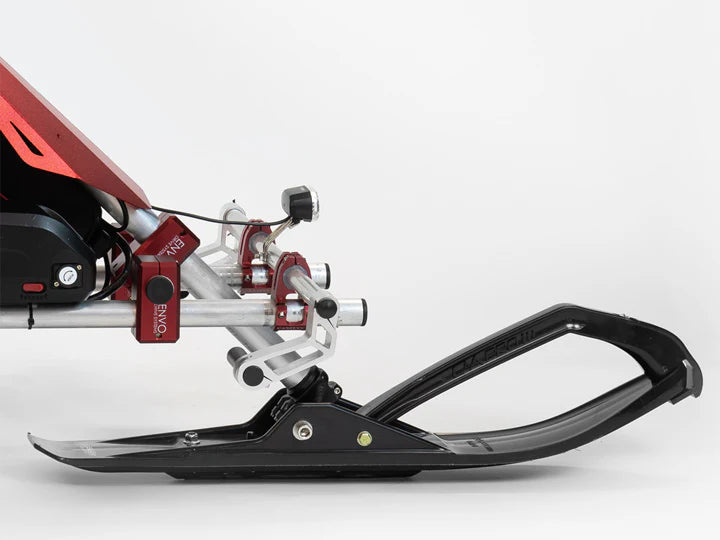

SKI
Skis and the fully customizable/ adjustable stem assembly attached to the front of the snowkart ensures easy gliding and accurate and sharp turns on snow and ice. It has great floatation on the uneven snow surface. It can be used on snow, as well as off-road on ice.
-
THUMB THROTTLE
ENVO Snowkart is equipped with a thumb throttle that gives you an extra boost which activates the motor proportionally to the twist no matter you pedal or not to give you a fully electric ride in case you cannot pedal or need an instant acceleration or uphill push.
-
HOUSING CABLES
Waterproof housing with colour coded connections assisting you in properly assembling the Snowkart into proper connections, thereby avoiding errors.
-
GUIDE ROLLERS
Guide rollers that are made of ultra-high molecular weight polyethylene material, which is strong, light, reliable and maintenance-free with the help of sealed high precision ball bearings.
-
SPROCKET
Easily replaceable UHMWPE sprocket guarantees transfer of over 100KGF of traction to the rubber track with minimal friction and noise.
IMPORTANT NOTE TO BUYERS
This is a DIY product preliminary launch for early adopters. This concept has gone through all major engineering, prototyping, limited production, testing, revisions, and approval to be released for marketing. However, there might be multiple unknown failure scenarios in the actual use of this product as mobility means in various terrains which are assumed the risk by the users. That means the buyer, assembler and users must be mechanically inclined and fully understand the product details and instructions as well as all probable risks of using. DIY installation on a wide range of bicycles requires a creative and a technical mind. Failure to a proper installation may cause serious damage to the bike and or hazard of severe injuries. The buyer assumes the liability for the safe installation and use of this product by signing the Liability Waiver. Before ordering, if you have any questions or need further details, do not hesitate to contact us.
SNOWKART FEATURES
| Motor XS |
| Motor Controller XS |
| Display Computer XS |
| Battery XS |
| Battery energy XS |
| Battery dimensions XS |
| Thumb Throttle XS |
| DIMENSIONS XS |
| Weight XS |
| SPECIFICATION | |
|---|---|
| Motor | 750W RATED (1500W MAX) |
| Motor Controller | BRUSHLESS MOTOR CONTROLLER |
| Display Computer | THE LCD3 METER OFFERS SMART CONTROLS AND REAL-TIME RIDE DATA |
| Battery | LI-ION 48V 17.5AH |
| Battery energy | 840WH |
| Battery dimensions | 370 X 110 X 90 MM |
| Thumb Throttle | HAUL EFFECT SENSOR, ANALOGUE LINEAR INCREASING TORQUE |
| DIMENSIONS | LXWXH = 200CM X 85CM X 80CM |
| Weight | 45KG |
